HSS Shapes - Round - HSS2.5x.125

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

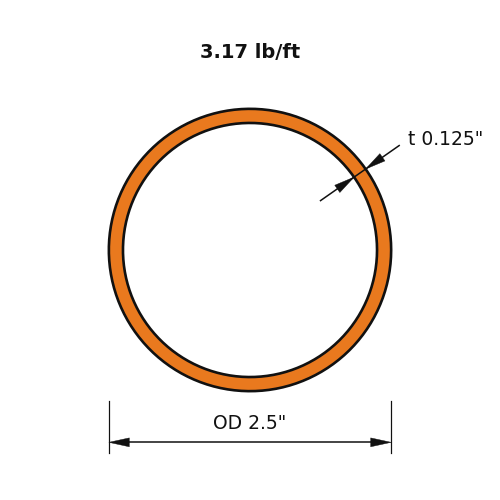

Dimensions

PropertyValue
Nominal Weight3.17
Outside Diameter2.5
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.619
Zx0.66
Sx0.495
rx0.844
Iy0.619
Zy0.66
Sy0.495
ry0.844
J1.24
C0.99

Full sortable table: Section properties table for this family
